Electric Designboats Tender 06

Built by Bootswerft Heinrich AG in Kreuzlingen, Switzerland, the Designboats Tender 06Oe is an elegant and efficient electric sportboat.

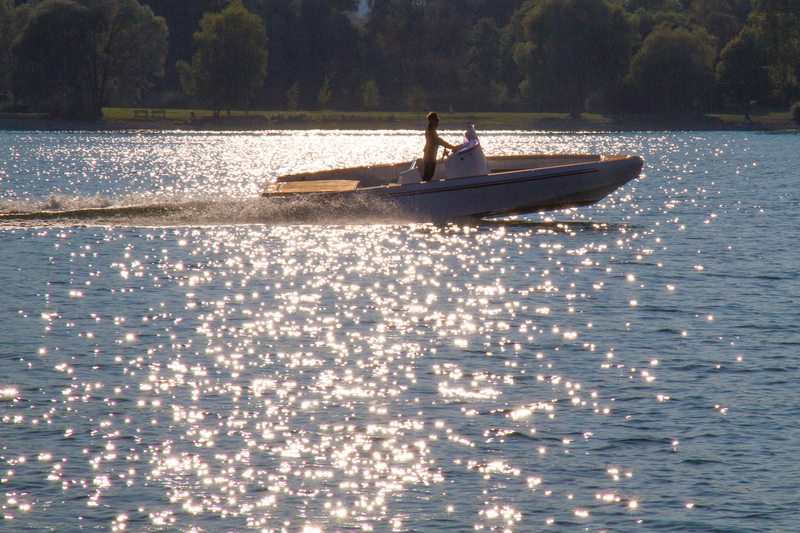

The boat pictured here is "e-motion," a beautiful Tender based in Sausalito, California. The hull was shipped from Switzerland to the U.S., where Ruckmarine worked with Keefe-Kaplan Maritime, Inc. (KKMI) in Richmond, California, to install the Torqeedo Deep Blue 80 electric outboard system.

Tender 06 Basic Specifications
Length 20 ft. 6 m
Beam 5.5 ft 1.7 m
Draft (min.) 1 ft. 0.3 m
Displacement ~1896 lbs. ~860 kg
Crew (max.) 5
Propulsion Torqeedo Deep Blue 80
Max. power 80 HP equivalent 66 kW
Max. speed 31 MPH 50 km/h 27 kts
Range (on plane) ~20 mi. ~32 km ~17 NM
Max. range <62 mi. <100 km <54 NM

Outboard model shown.  Also available with electric inboard drive.

ALSO AVAILABLE - Electric Designboats Tender 08

Tender 08 Basic Specifications
Length 26 ft. 8 m
Beam 8.2 ft 2.5 m
Draft (min.) 1.3 ft. 0.4 m
Crew (max.) 8
Propulsion 2 x Torqeedo Deep Blue 80 Inboard
Max. power 160 HP equivalent 132 kW
Max. speed 31 MPH 50 km/h 27 kts
Range (on plane) ~20 mi. ~32 km ~17 NM
Max. range <62 mi. <100 km <54 NM

Offered by

In partnership with

Bootswerft Heinrich AG

Torqeedo Inc.



Keefe-Kaplan Maritime
